Basic Info.
Model NO.
YTAT-216
Loading Method
N/a
Display
Digital
Control
Button Digital Display Controller
Weight
100-500Kg
Power Source
AC380V
Oil Cylinder Position
N/a
Internal Size(mm)
600*600*600(W*H*D)
Temp.Range
Rt.+25 Degree ~ 200 Degree (300 Degree)
Temp. Fluctuation
+/- 0.3 Degree
Temp. Uniformity
+/- 1% Degree
Temp. Resolution
0.1 Degree
Interior Chamber Material
SUS#304 Stainless Steel Plate
Exterior Chamber Material
Cold Rolled Steel Plate + Paint
Insulation
PU + Fiberglass Wool
Circulation
Centrifugal Fan Air Circulation System
Controller
Button Digital Display Controller
Warranty
Free Parts Warranty for 12 Months
Heating-up Time
30min
Heating System
SUS# Stainless Steel High-Speed Heater
Power Supply
AC 380V
Service
Customized
Transport Package
Well Packed in Strong Wooden Cases
Specification
SGS, TUV certified.
Trademark
Yuanyao
Origin
Guangdong, China(Mainland)
HS Code
9032100000
Production Capacity
100 Sets / Month
Product Description

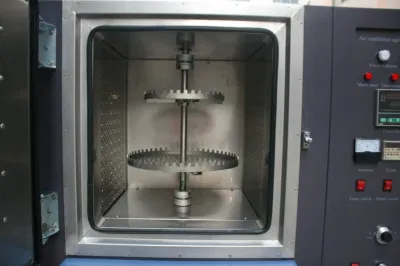

Laboratory Air Ventilation Aging Testing Chamber Machine for Marerial Test
Brief description
1. Insulation: Fiberglass wool
2. Cooling: Imported compressor
3. Circulation: Siroco fan
4. LCD touch panel
Usage & Application Fields
Laboratory Air Ventilation Aging Testing Chamber Machine is Applicable to non-metallic materials and rubber products to make aging cracking experiments. Such as PVC, PE, silica gel, rubber and wire and so on. And this function is to promote and sulfur rubber material such as the degradation of pulling and elongation elongation before/after heating calculation rate.
Technical Specifications
1. Quality, high performance with competitive resonable price.
2. Easy operation & maintenance.
3. Swift delivery and careful responsible after-sale service.
Main features of the equipment
1. No reaction are shake handshandle, simple operation.
2. With timing function, the temperature control is accurate and reliable.
3. By using high temperature protection intelligent program microcomputer controller.
4. Use a multi-fin, centrifugal level vertical heat exchange circulation system, air change rate can be adjusted to the desire rate.
5. Heating mode for nickel chrome alloy type heating, heating up fast, uniform temperature distribution.
6. Adopt the Imported stainless steel plate.
In addition to the High temperature resistance air-type aging test chamber, we also produce:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles dimensions with different configurations are available upon request, welcome to enquire and purchase!
Detailed Date
Company Introduce
Except Laboratory Air Ventilation Aging Testing Chamber Machine, Guangdong Yuanyao Test Equipment Co., Ltd also supply:
Temperature Humidity Chamber, Three Zones Temperature Humidity Chamber, Climate And Vibration Combined Test Chamber, Rapid Rate Temperature Chamber, Walk In Climate Chamber, High Altitude Low Pressure Chamber, Automobile Fan High Low Temperature Alternating Chamber, Loquid Type Thermal Shock Chamber, 2 Zones Type Thermal Shock Chamber, and so on.
If you are interested in our products, please contact me soon.
Brief description
1. Insulation: Fiberglass wool
2. Cooling: Imported compressor
3. Circulation: Siroco fan
4. LCD touch panel
Usage & Application Fields
Laboratory Air Ventilation Aging Testing Chamber Machine is Applicable to non-metallic materials and rubber products to make aging cracking experiments. Such as PVC, PE, silica gel, rubber and wire and so on. And this function is to promote and sulfur rubber material such as the degradation of pulling and elongation elongation before/after heating calculation rate.
Technical Specifications
1. Quality, high performance with competitive resonable price.
2. Easy operation & maintenance.
3. Swift delivery and careful responsible after-sale service.
Main features of the equipment
1. No reaction are shake handshandle, simple operation.
2. With timing function, the temperature control is accurate and reliable.
3. By using high temperature protection intelligent program microcomputer controller.
4. Use a multi-fin, centrifugal level vertical heat exchange circulation system, air change rate can be adjusted to the desire rate.
5. Heating mode for nickel chrome alloy type heating, heating up fast, uniform temperature distribution.
6. Adopt the Imported stainless steel plate.
In addition to the High temperature resistance air-type aging test chamber, we also produce:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles dimensions with different configurations are available upon request, welcome to enquire and purchase!
Detailed Date
| Model | YTAT-101 | YTAT-216 |
| Test area size W*H*D (cm) | 45*50*45 | 60*60*60 |
| Exterior chamber size W*H*D (cm) | 105*150*60 | 120*160*75 |
| Temperature range | RT+25ºC~200ºC(300ºC) | |
| Temperature fluctuation | ±0.3ºC | |
| Temperature uniformity | ±1%ºC | |
| Temp.resolution | 0.1ºC | |
| Heating-up time | 30 min 40 min | |
| Exterior chamber material | Cold rolled steel plate + Paint | |
| Interior chamber material | SUS#304 stainless steel plate | |
| Insulation material | PU + fiberglass wool | |
| Wind circulation | Centrifugal fan air circulation system | |
| Heating system | SUS# Stainless steel high-speed heater | |
| Controlling system | Button digital display controller | |
| Air exchange rate | 5~200 (3~250)/h | |
| Other components | Control status indicator, turntable/compartment shelf (2 freely adjustable) | |
| Safety protection device | Phase sequence protection, over temperature protection, overload protection | |
| Power supply | AC 3ψ380V 60/50Hz | |
| Customization service | Non-standard or special requirements are all welcome | |
Company Introduce
Except Laboratory Air Ventilation Aging Testing Chamber Machine, Guangdong Yuanyao Test Equipment Co., Ltd also supply:
Temperature Humidity Chamber, Three Zones Temperature Humidity Chamber, Climate And Vibration Combined Test Chamber, Rapid Rate Temperature Chamber, Walk In Climate Chamber, High Altitude Low Pressure Chamber, Automobile Fan High Low Temperature Alternating Chamber, Loquid Type Thermal Shock Chamber, 2 Zones Type Thermal Shock Chamber, and so on.
If you are interested in our products, please contact me soon.
